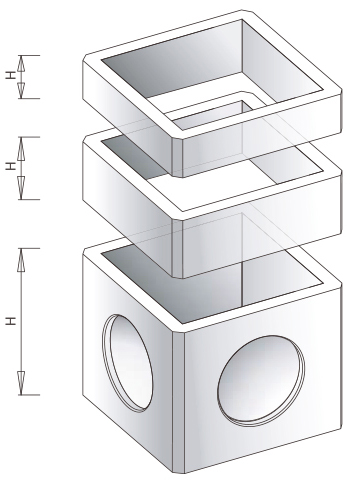

Prolunghe normali per pozzetti
NORMA UNI EN 1917*

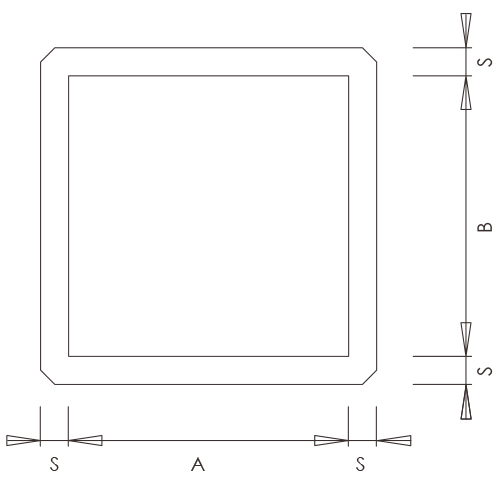

| Codice | A cm | B cm | H cm | S cm | Peso kg |
|---|---|---|---|---|---|
| 074 | 20 | 20 | 25 | 3 | 20 |
| 054/A | 25 | 25 | 27 | 3 | 23 |
| 054/1 | 30 | 30 | 5 | 3,5 | 5 |
| 054/2 | 30 | 30 | 10 | 3,5 | 10 |
| 054 | 30 | 30 | 20 | 3,5 | 21 |
| 055 | 30 | 30 | 32 | 3,5 | 37 |
| 077 | 40 | 40 | 5 | 3,5 | 7 |
| 077/1 | 40 | 40 | 10 | 3,5 | 14 |
| 056 | 40 | 40 | 20 | 4 | 28 |
| 057 | 40 | 40 | 25 | 4 | 40 |
| 058 | 40 | 40 | 43 | 4 | 70 |
| 060/1 | 50 | 50 | 5 | 4,5 | 11 |
| 060/2 | 50 | 50 | 10 | 4,5 | 23 |
| 059 | 50 | 50 | 20 | 4,5 | 45 |
| 060 | 50 | 50 | 25 | 4,5 | 50 |
| 061 | 50 | 50 | 55 | 4 | 125 |
| 062/1 | 60 | 60 | 5 | 6 | 14 |
| 062/2 | 60 | 60 | 10 | 6 | 29 |
| 062 | 60 | 60 | 25 | 6 | 71 |
| 063 | 60 | 60 | 40 | 6 | 126 |
| 064 | 60 | 60 | 65 | 6 | 208 |
| 065 | 80 | 80 | 25 | 7 | 125 |
| 066 | 80 | 80 | 40 | 7 | 246 |
| 067 | 80 | 80 | 85 | 7 | 450 |
| 068 | 100 | 100 | 25 | 9 | 212 |
| 069 | 100 | 100 | 40 | 9 | 317 |
| 070 | 100 | 100 | 107 | 8 | 791 |
| 071 | 120 | 120 | 25 | 10 | 300 |
| 072 | 120 | 120 | 40 | 10 | 470 |
| 073 | 120 | 120 | 125 | 10 | 1400 |
* Escluse misure 20, 25, 30
